CSS Notes

This document is a draft specification for the creation and positioning of notes in both continuous and paged media. This specification was written as part of the Pushing Forward for CSS Print project, funded through the NGI0 Commons Fund, established by NLnet. It’s a joint initiative from core contributors of Paged.js (@julientaq, @JulieBlanc) and the WeasyPrint team (@grewn0uille, @liZe). The result of this work can be found on CSS Print Lab’s github.

This draft is based on:

The note() value, that you can use in the content property to declare elements as notes;
An extension of the element() value to place the element removed from the flow (i.e. the note) in a specific place of the same document,
The @note-area at-rule that can be used to display notes in a page (for paged media only);
Three syntactic proposals currently under discussion to handle notes in continuous media

Originally published here : https://github.com/w3c/css-print/issues/3

Discussed in the W3C CSS Working Group repository: https://github.com/w3c/csswg-drafts/issues/12472

Types of notes

For now, the W3C specifications only allow the creation of footnotes in paged media, as described in the CSS Generated Content for Paged Media Module (css-gcpm-3). But we know that designers and editors like to be able like to make use of all kinds of notes. You can find some examples here: https://www.w3.org/XML/2015/02/footnote-examples/. To name a few:

Types of notes
Footnotes	notes placed at the bottom of the pages (paged media only)
Side notes	notes related to the page content, grouped in the left or in the right of the page or content, alongside the text area
End notes	notes grouped together in one place at the end of a document or at the end of a section of the document
Marginal notes	notes that are placed to one side of a page (or document) or both sides at the exact vertical position of the note reference number
Column footnotes	footnotes that can be placed according to the column in which they are located
Multiple notes area	not for pages that share footnotes, margin notes, column footnote, etc.

Specifications W3C

A part of the CSS Generated Content for Paged Media Module (css-gcpm-3) is dedicated to footnotes. The first section defines the terms of the footnote objects. These definitions can be applied to all types of notes, thus we’ll keep the same terms but removing the prefix “foot” for the rest of this issue discussion:

Note element: The element containing the content of the note, which will be removed from the flow and displayed as a note.

Note marker: (also known as note number): A number or symbol adjacent to the note body, identifying the particular note. The note marker should use the same number or symbol as the corresponding note call, although the marker may contain additional punctuation.

Note body : The note marker is placed before the note element, and together they represent the note body, which will be placed in the note area.

Note callout (also known as note reference): A number or symbol, found in the main text, which points to the note body.

Note area: The page or document area used to display notes.

Note rule: (also known as note separator): A horizontal rule is often used to separate the note area from the rest of the page. The separator (and the entire note area) cannot be rendered on a page with no notes.

The specification also describes how to create footnotes in a page with the following code:

@page {
  @footnote {
    float: bottom;
    /* Style of footnote area */
  }
}

span.footnote {
  /* Display span as footnote */
  float: footnote;
}

This code also creates the special footnote counter and special pseudo-elements for footnote calls (::footnote-call) and footnote markers (::footnote-marker). The position, size and styles of the footnote area are defined by the @footnote declaration. The specification does not set precise limits, only a couple of paragraphs and a lot of issues and unanswered questions. The advantage is that we can do many proposals without conflicting with the current specifications.

In css-gcpm-3, there is this issue:

Issue: Why is float: bottom used with the footnote area? Floating footnotes to the footnote area, and then floating the footnote area itself, seems overly complex, given that implementations don’t allow the footnote area to float anywhere else. Note that some implementations do allow the footnote area to be absolutely positioned. (https://www.w3.org/TR/css-gcpm-3/)

We agree that using double float declaration is complex. But a mechanism is needed to move the note element into a specific area of the page or the document. To do this, we can take inspiration from a mechanism already present in the draft of the paged media specifications, the running element: by adding the position: running() declaration, we can remove an element from the flow to reuse it in multiple places, perfect for the running heads of a book for example.

For the notes, we’d like to propose a new way to create and place notes, based on new values (notes() and element()) for properties already in the CSS specifications (position and content).

Proposal: pattern to create notes

Global pattern

Notes are always dependent on a principal flow, but they are out-of-flow elements, such as an aside. This is ancillary content that may be moved to the bottom of the page, to its margins, or to another section of the document. A note is created when the content is moved to a specific area of the document, leaving a reference indicator behind.

For all types of notes, we can see a pattern to build them:

Declare that an element of a flow is a note.
Remove the item from the flow.
Leave a note reference indicator in its place, which points to the moved note element - this is an explicit link from a location in the document to a note element.
Place the note element and its children in a special area with all the other notes of the page or the document, in the order of appearance in the flow.
Create a marker before the note that matches the note call.
Place the note area in the page or document with CSS layout facilities according to a position scheme.
(If paged media) If the note overflows the note area, move the items to the next page in the equivalent area, according to note policy.

Clarification about HTML elements

The W3C doesn't provide a dedicated way to tag notes in HTML. Some discussions in the mailing list of the W3C or WHATWG, or in blog articles, suggest different ways but none of them seem to have unanimous agreement.

In use

In the meantime, there are two most commonly used methods of adding notes:

It's common to see link elements with href attrbute pointing to sections of a page with fragmented URLs. This mechanism provides some issues pointed out by Greg Lowney in terms of accessibility. This also poses problems with more complex layouts. If the notes elements are presented in a list, it becomes necessary to transform the DOM to place them in the manner of a side note, end notes or footnotes (both for continuous and/or paged media).
Another way would be to use some <span> elements directly in paragraphs to encapsulate note elements in the place where they appear. This is the method used in examples in the css-gcpm-3 draft.

In unofficial specifications

David MacDonald and Shane McCarron propose specifics <note> , <notegroup>and <refnote> elements in some unofficial specifications. One part of the document presents uses cases and a lot of requirements that are very useful. However, we believe that many of the HTML syntaxes proposed in the document can be best achieved through CSS mechanisms.

What we’d like to have

Therefore, we propose to use only one note element.

A note element represents a note, e.g. a secondary content that is related to other content in the document. It’s a self-contained node that gives the information about where a note starts and where it ends. The note element must be placed where the note appears in the content flow. This is a new type of HTML element which has the following properties:

The note element is a block type element constituted by the opening <note> and closing </note> tags. Any content between those two tags is part of the content of the note.
The note element must be contained into another HTML element that accepts flow content, meaning that the note element can be the child of any grouping content element or heading element.
The note element accepts other block or inline elements such as paragraphs, table, images, list, etc.
A note element can be a child of another note element.
The <note> element accepts all the global attributes.
In continuous media, the user agent must give the user the possibility to show or hide the <note> element to read it when they want.

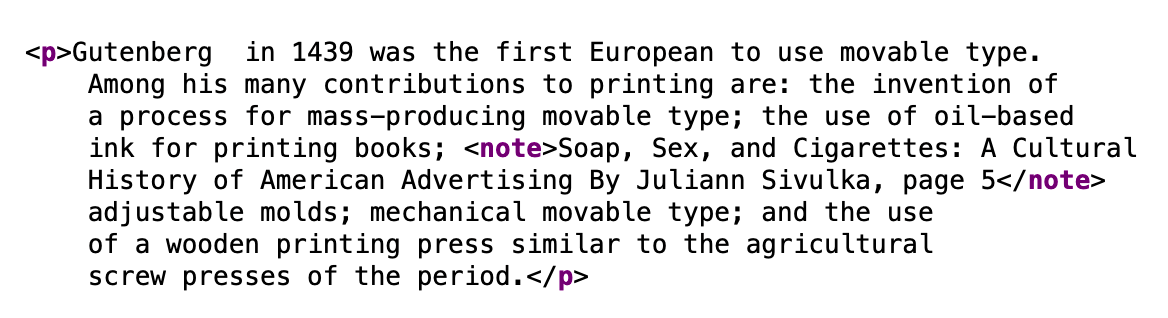

The following example is a conforming HTML fragment:

This potential new HTML element is easy to use and allows a note to be always attached to the content it adds details to. This proposal is aligned to the way HTML works (a node mechanism) without adding an HTML element that would depend on another one (to create note references for example).

Until this element exists in HTML, a span element will be used with a class named “note” for illustrative purposes.

Create notes with CSS

A mechanism is needed to move the note element into a specific area of the page or of the document, and leaving a reference indicator in its place. To do this, we add the note() value to the position property and the element() value to the content property.

The 'note()' value

The note() function removes the element (and associated ::before and ::after pseudo-elements) from the principal flow, and makes it available to place in a page margin-box, a page note-area @note-area or a ::note-area pseudo element using element(). The element inherits from its original position in the document, but is not rendered there, instead a ::note-call pseudo-element is created and inserted in the original position of the note. The elements keep their defined styles. A custom identifier is required: note(<custom-ident>). If there is no element() value corresponding to the custom identifier of the note() value, the elements are not removed from the flow and are shown as inline note elements.

The 'element()' value

To place the elements removed from the flow in a specific place on the document or page, we can use the function element() already present in the specifications and usable in a content property.

The element() value of the content property places an element (which has been removed from the normal flow via running()) in a page margin box. Whenever the value of the element changes, the value of element() is updated.
Just as with string(), element() takes an optional keyword to describe which value should be used in the case of multiple assignments on a page. User agents must be able to recall many values, as element() can return past, current, or future values of the assignment. https://www.w3.org/TR/css-gcpm-3/#element-syntax

A custom identifier is required (same as the corresponding note() function): element(<custom-ident>).

The keyword `all-once`

To make element() work with note(), a specific behaviour needs to be added that can be declared via an optional keyword all-once.

With the keyword all-once, the value of all the assignments of the document or the page are used; i.e. all the note elements (which have been removed from the normal flow via note()) are displayed in the new area where they're assigned. Each element from note() value is displayed in the same order of the flow and has only one assignment in the document or in the page (the elements are not repeated). The value may be empty if there is no note element on the page.

element() = string(<custom-ident>, all-once)

Using in `@note-area`

The element() function can be used in new page area @note-area (see Page note area).

Notes in page note area

note.note {
  position: note(<custom-ident>);
}

@page {
  @note-area {
    content: element(<custom-ident>, all-once);
  }
}

Using in margin boxes

Using the element() function, the margin-boxes can now receive the content of the note elements.

The dimensions and (default) properties of a margin box work as described in CSS-page-3. The size of the note area does not affect the content page area.

Notes in page margin box

The following rules result in the placement of the note elements inside the left-top margin box. Margin and text alignment of the note elements are set to the note element itself and padding of the margin box is set in @left-top at-rule.

@page {
  @left-top {
    content: element(sidenote, all-once);
    padding: 5mm;
  }
}

note.sidenote {
  position: note(sidenote);
  margin-bottom: 10px;
  text-align: left;
}

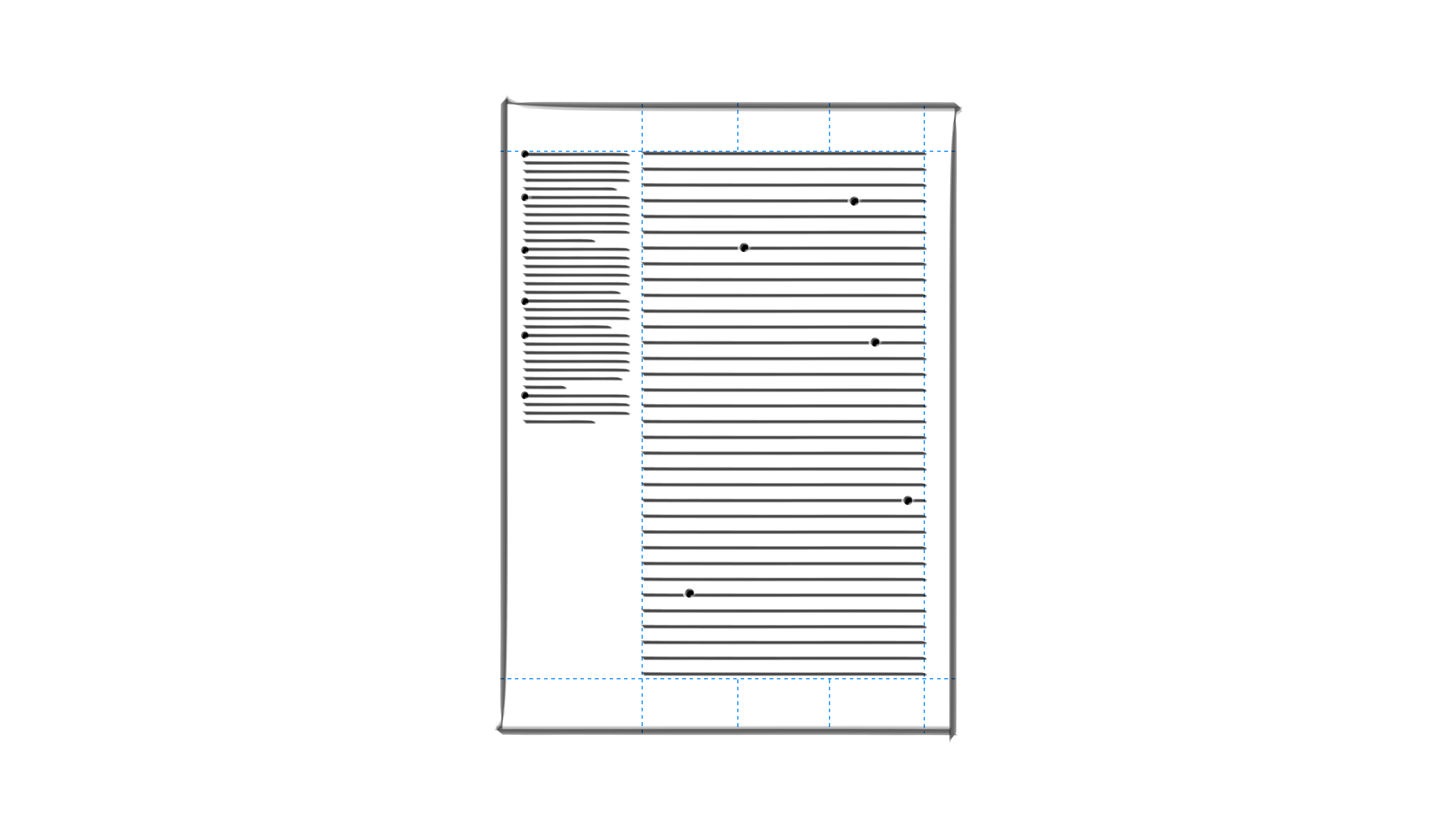

A classic use of side note in the margin of the page

ISSUE: In css-gcpm-3, the default value of the second argument of the element() function is first. However, when notes are created from the note() function, this should be the value all-once by default. How do you indicate this?

ISSUE: If the other arguments of the function element() are declared (first, first-except, last, start), what does that do for the note elements?

The note counter

This section and follows contains some specifications of css-gcpm-3.

The note counter is a predefined counter associated with the note element. Its value is the number or symbol used to identify the note. This value is used in both the note call and the note marker. It should be incremented for each note.

By default, note counters use a predefined counter with the same name (<custom-ident>) as the one used in note(). You don’t need to declare counter-reset or counter-increment unless you want to customize their behavior.

In the example below, sidenotes are reset at the beginning of each section.

section{
    counter-reset: sidenote 0;
}
note.sidenote{
    position: note(sidenote);
}

In the example below, footnotes increment by 2 instead of the default value of 1.

note.footnote{
    position: note(footnote);
    counter-increment: 2;
}

The note counter, like other counters, may use any counter style. Notes often use a sequence of symbols.

::note-call { content: counter(footnote, symbols('*', '†', '‡', '§')); }

::note-marker { content: counter(footnote, symbols('*', '†', '‡', '§')) '. '; }

The note counter can be reset on each page:

@page {
  counter-reset: note;
  @note-area { … }
}

Note that the value of the note counter should depend on the position of the note element in the document tree, not where it is eventually placed. A note element may sometimes be placed on the page after the note call, but the same counter value must be used for both.

The `::note-call` pseudo element

A ::note-call pseudo-element is inserted in place of the note element when the latter is removed from the flow. By default, the content of this pseudo-element is the value of the note counter, styled as a superscripted number. It must act like an anchor.

::note-call {
  content: counter(note);
  vertical-align: baseline;
  font-size: 100%;
  line-height: inherit;
  font-variant-position: super;
}

The `::note-marker` pseudo element

The ::note-marker pseudo-element represents the note element’s marker, the number or symbol that identifies each note. This pseudo-element behaves like a ::marker pseudo-element, as defined in [CSS3LIST]. It is placed at the beginning of the parent’s content, and is inline by default. The ::note-marker can be styled just as other ::marker elements can be. The default style should include list-style-position: inside, or be set as any other list.

::note-marker {
  content: counter(note) '. ';
}

The ::note-callback pseudo element

The ::note-callback pseudo-element represents the note element's call back, e.g. a navigation back from a note that returns to the correct associated ::note-call. It is placed at the end of the superior parent’s content, and is inline by default. By default, the content of this pseudo-element is the Leftwards Arrow with Hook Unicode Character (“↩” U+21A9). It must act like a link.

::note-callback {
  content: '↩';
}

ISSUE Mostly useful for continuous media. Should we mention that by default it doesn’t show up in paged media? But, paged media isn’t always meant for print… Thoughts?

Support for multiple note types

Notes call and maker can be used either at the parent element level or at the note element level, allowing different types of notes within the same section.

note.sidenote{
    position: note(sidenote);
}

note.footnote{
    position: note(footnote);
}

note.sidenote::note-call {
    /* will affect all the note with a class `sidenote`*/
}

note.footnote::note-call {
    /* will affect all the note with a class `footnote`*/
}

Page note areas (`@note-area`)

The @note-area at-rule creates special page areas that can be used to display notes elements via the element() function. Those areas, called “page note areas”, are created within the page context, which is the declaration block of the @page rule. This rule defines a box that, if used, will contain the corresponding note elements that appear on that page and move by generated content properties for notes. Since note areas are in the context page, note boxes are contained in the content area of a page box.

The @note-area may be following by a custom identifier.

The properties of a note box are determined by properties declared in the note rules. These properties can be used to define:

positioning scheme of the note box,
size of the note box,
note policy,
General styling of the note box (each note boxes has its own margin, border, padding and content areas.)

If the content of a note area overflows from the box, it will go to the next page, in the same note area (see Notes policy).

Positioning schemes of note area

Any of the CSS layout facilities can be used to create, position and size note areas: float, absolute positioning, grid, exclusion, etc.

Using float on the page and negative margins can be helpful in creating a note area half on margin, half on text content.

@page {
  @note-area {
    content: element(sidenotes, all-once);
    float: top right;
    float-reference: page;
    width: 42mm;
    margin-right: -30mm;
  }
}

note.sidenote {
  position: note(sidenotes)
}

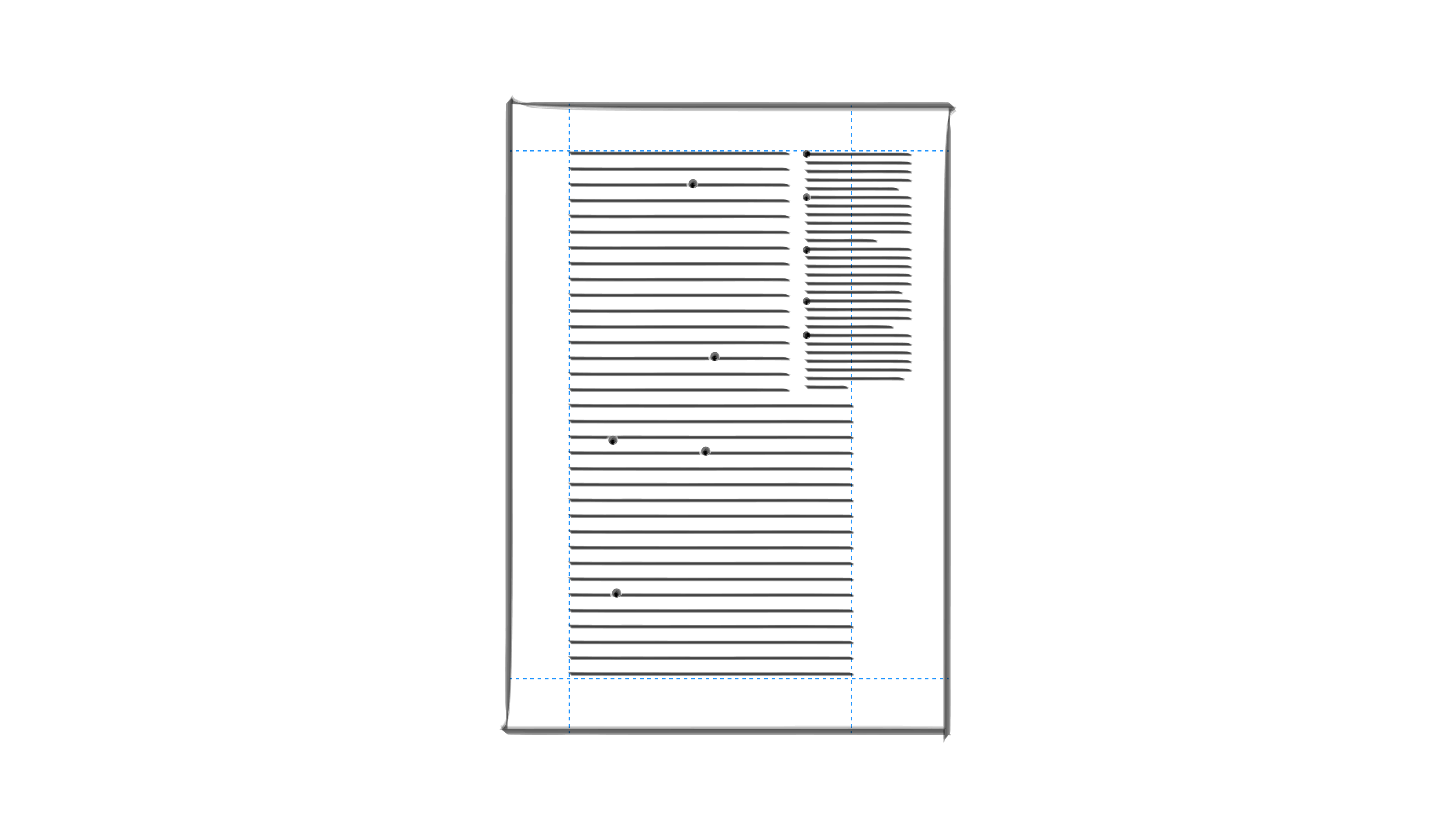

Note wrapping using floating note area

Since a note area is a box, it’s possible to layout the area itself (with columns for example).

@page {
  @note-area {
    content: element(notes, all-once)
    float: bottom right;
    float-reference: page;
    width: 50%;
    columns: 2;
  }
}

note.notes {
  position: note(notes);
}

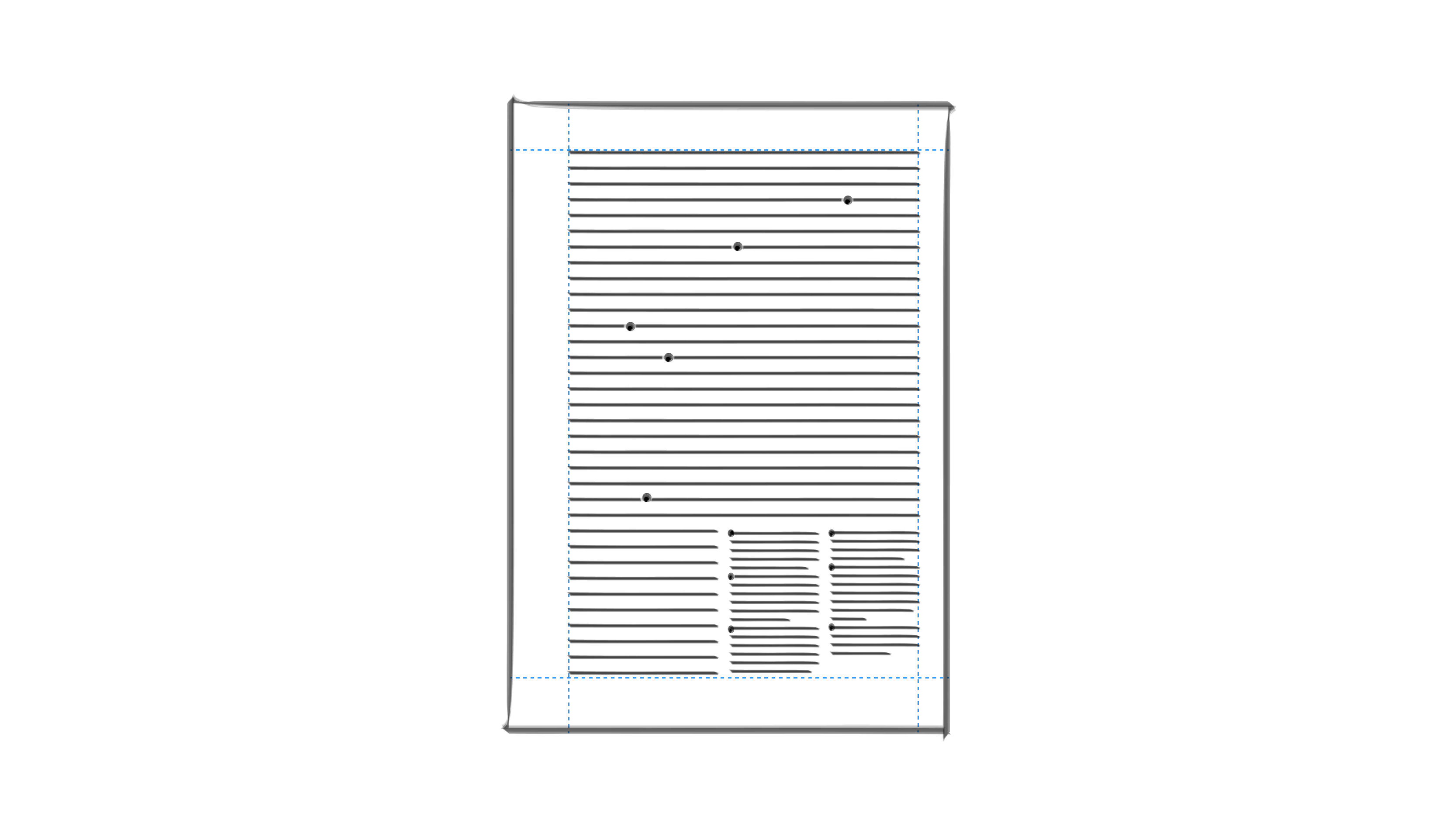

A bottom-right floating note area divided in columns

Default values of properties for @note-area:

@note-area {
  float: bottom;
  float-reference: page;
  width: 100%;
  max-height: 80%;
}

Float notes (`float` and `float-reference`)

CSS Page float adds some values to the float property to position elements in a page context, and proposes float-reference property to indicate the “reference container” for a floated element. We will make extensive use of these properties in the following examples.

The `float-reference` property

Name: float-reference Value: inline | column | region | page (...)

inline The float reference is the line box of the float anchor. (...)

column The float reference is the column in a multi column environment in which the float anchor is placed.

region The float reference is the region in a region-chain within which the float anchor is placed. (...)

page The float reference of the float is the page within which the float anchor is placed. (...)

Marginal notes on the left margin of the page

In this example, we use the inline value of the float-reference property. This allows the creation of marginal notes, i.e. notes placed to one side of the text, with the first line of the note body aligned with the line in the main flow that contains the note call.

@page {
  @left-top {
    content: element(refs, all-once);
    float: left;
    float-reference: inline;
    margin-left: -50mm;
    width: 50mm;
  }
}
note.refs {
  position: note(refs);
}

With float, using clear: left is a simple solution to avoid collisions of marginal notes.

ISSUE: We need to specify the algorithm that avoids collisions. Also, what if the marginal note overflows the page, how do we indicate that it can be moved up?

Extentions of the `float` property

CSS Page float propose some extentions of the float property.

Name: float

Value: left | right | top | bottom

Values can be added together:

float: top right;

ISSUE: Does the clear property can work with this proposal?

Notes for multi-column layout

In a multi-column layout, note elements may have to be displayed at the bottom of each column. This means that multiple note areas might have to be created for the same fragmented flow. This layout creates some issues:

The (foot)notes are not in a page context since the column properties are applied on an element contained in the page area and not to the page area itself.
Because a column is an anonymous box, there is currently no way in CSS to target a particular column of a multi-column element.

CSS Page float proposes the float-reference property to indicate the “reference container” for a floated element. The value column indicates that the float reference is the column in which the floated element is placed in a multi column environment.

We can use this reference to indicate the creation of note areas in the columns of the page where the note appears. As many boxes as necessary are created on each column. All the note areas have the same properties and can be targeted by one @note-area rule only.

@page {
  @note-area {
    content: element(notes, all-once);
    float: bottom;
    float-reference: column;
  }
}

#content {
  columns: 3;
}

#content note.notes {
  position: note(notes);
}

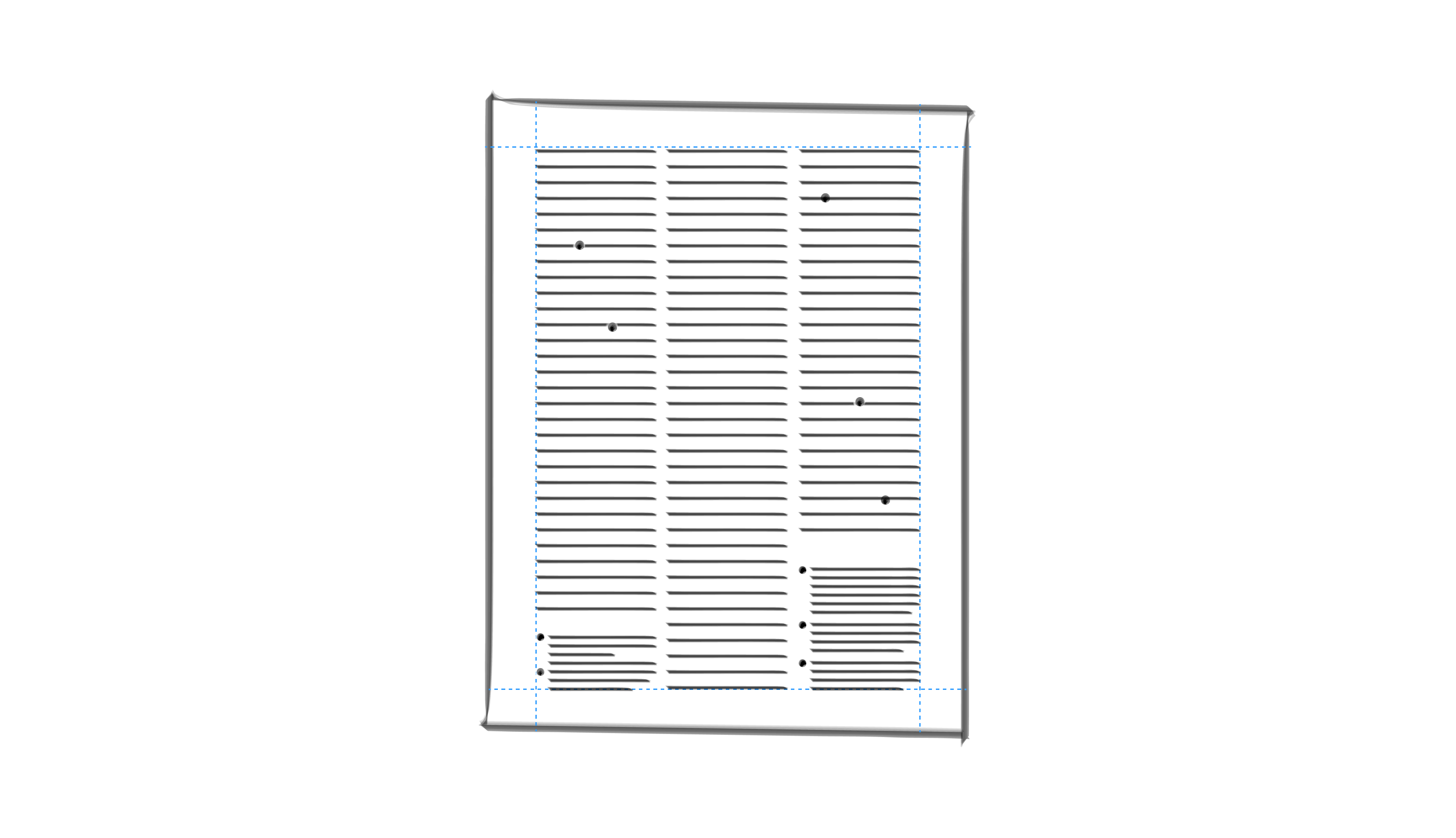

An example of notes for multi-column layout

Multiple notes areas in a page

There are already a lot of use cases in critical editions where you can find multiple kinds of notes (bibliographical references, explanations, etc.) The @note-area at-rule declaration make multiple notes easier by mixing multiple note areas in the same page context.

Multiple note areas in the same page

@page {
  @note-area refsA {
    content: element(refsA, all-once);
    float: bottom left;
    float-reference: page;
    width: 30mm;
    margin-left: -12mm;
  }
  @note-area refsB {
    content: element(refsB, all-once);
    float: bottom right;
    float-reference: page;
    width: 60mm;
    columns: 2;
  }
}

note.refsA {
  position: note(refsA);
}

note.refsB {
  position: note(refsB);
}

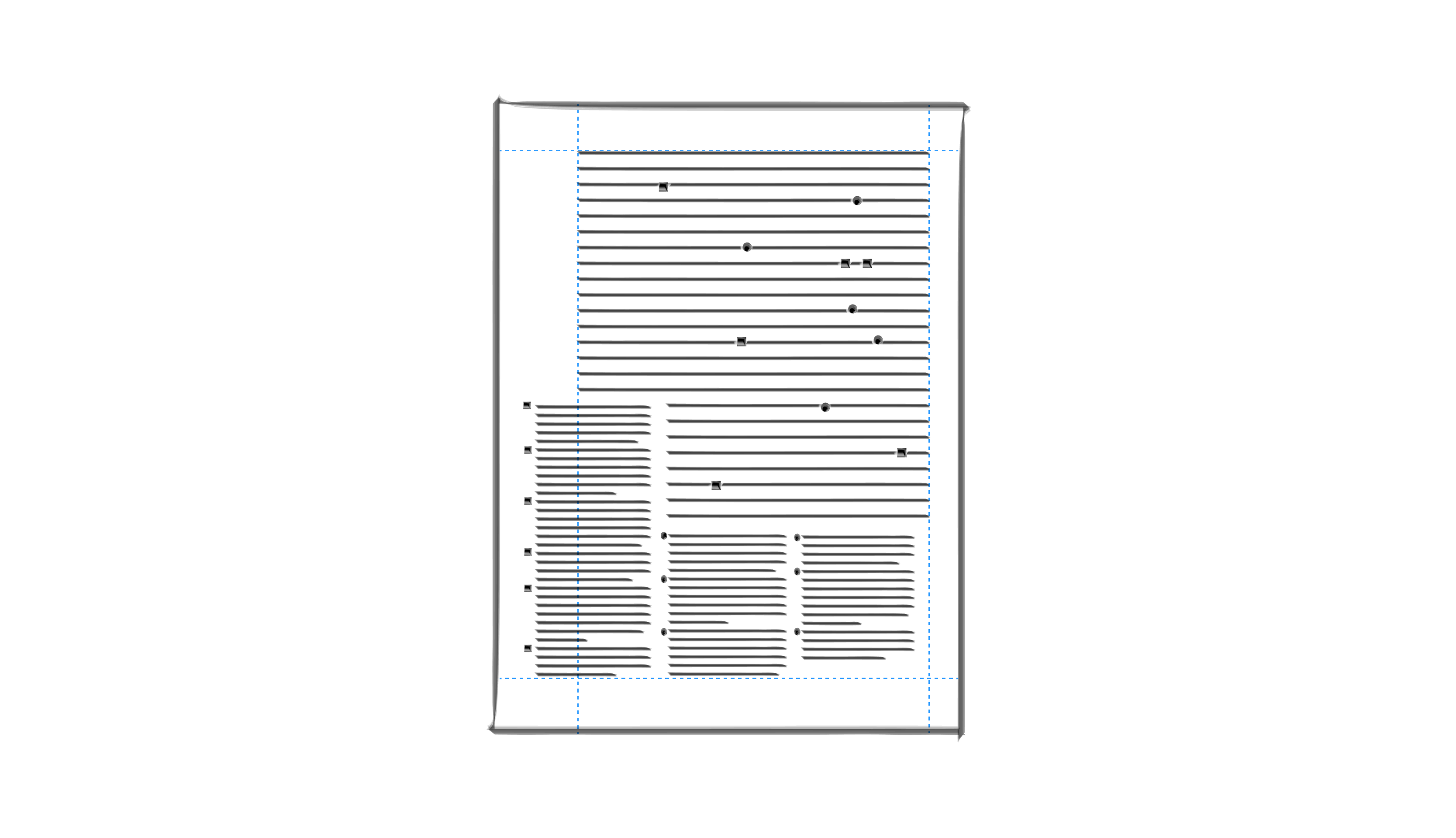

An example of the possible layout mixing multiple note areas and float

Footnotes and marginal notes in the same page

@page {
  @note-area {
    content: element(refs, all-once);
    float: left;
    float-reference: inline;
    margin-left: -50mm;
    width: 50mm;
  }
  @bottom-left {
    content: element(footnotes, all-once);
    width: 100%;
    vertical-align: bottom;
  }
}

note.refs {
  position: note(refs);
}

note.footnotes {
  position: note(footnotes);
}

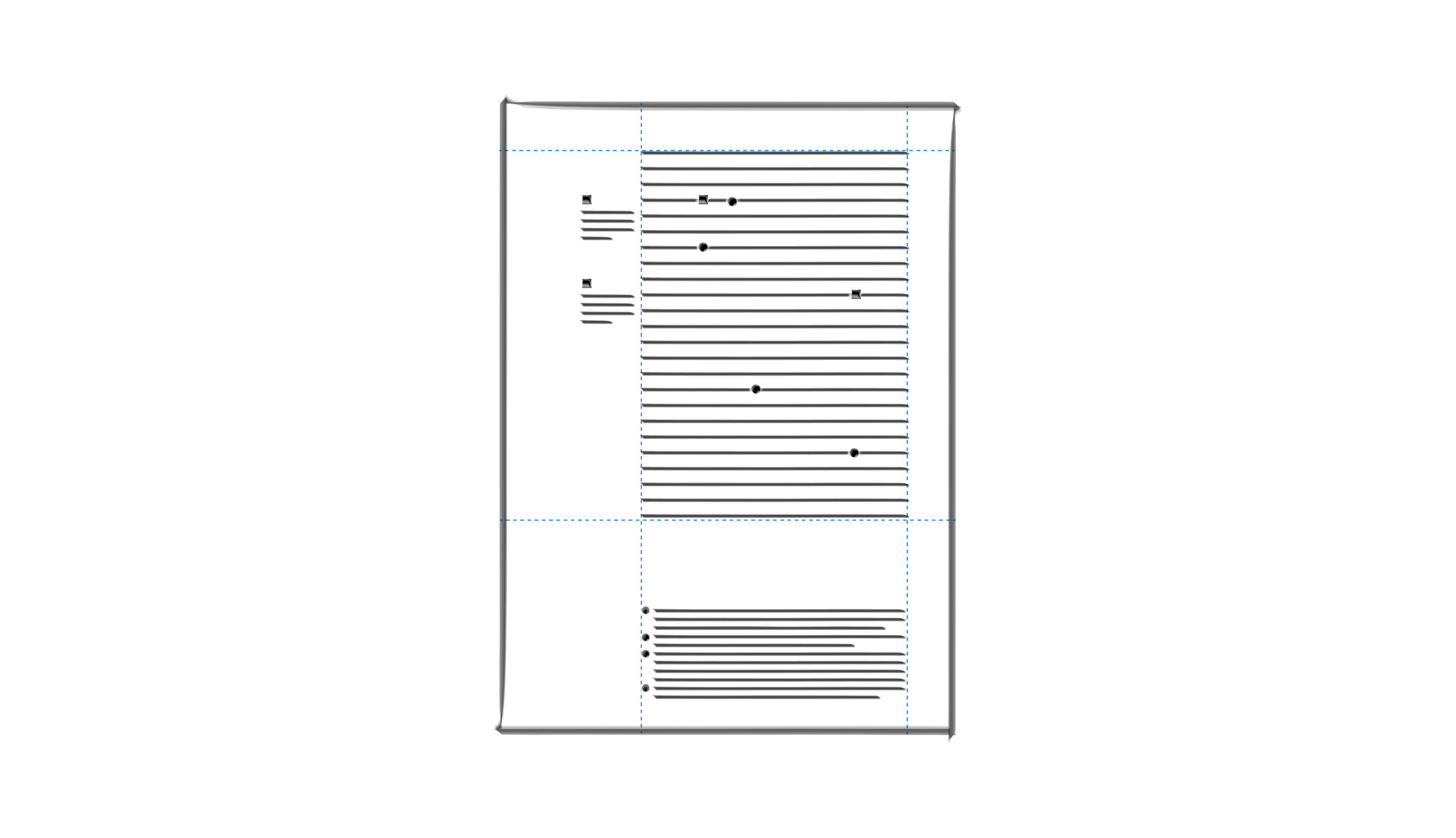

Mixing margin notes and footnotes for semantics notes

@footnote special at-rule

css-gcpm-3 defines a special@footnote rule. This rule can be kept in this specification as a specific @note-area with predefined positioning scheme. It behaves like a floated bottom page element. No positioning scheme designed by the user is taken into account in this @footnote rule, and only one footnote box can be created on a page.

@page {
  @footnote {
    content: element(footnotes, all-once);
  }
}

note.footnote {
  position: note(footnote);
}

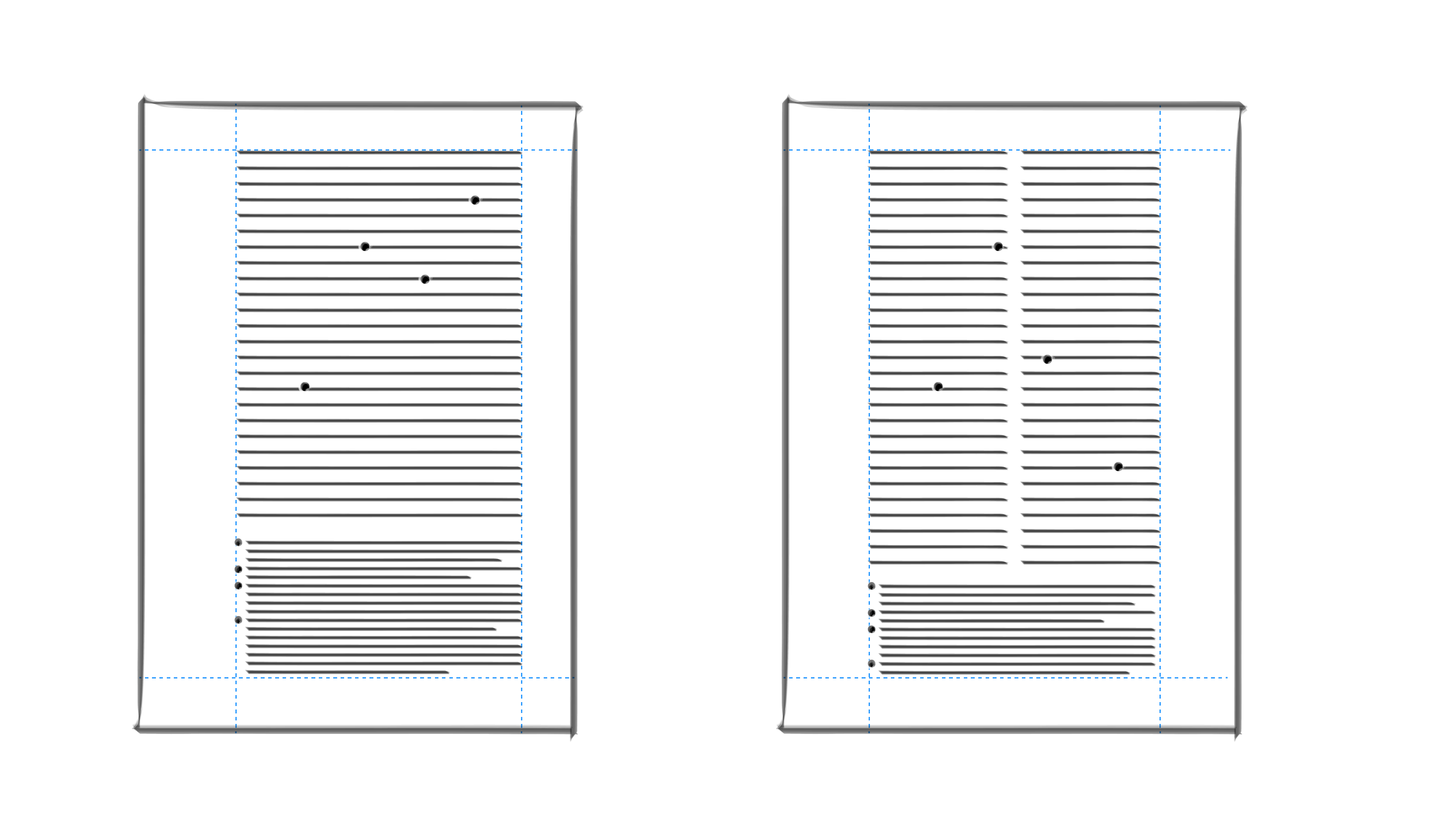

Notes are footnotes by default with the special @footnote rule (Two layout showing the default setup for footnotes)

This would have the exact same behavior when using the following declarations:

@page {
  @note-area {
    content: element(footnotes, all-once);
    float: bottom;
    float-reference: page;
    width: 100%;
  }
}

note.footnote {
  position: note(footnote);
}

Notes in continuous media

Notes in continuous media can follow the same general model as notes in paged media. The section Create notes with CSS applies to both types of media.

However, in continuous media, an explicit mechanism is needed to define where notes should appear, since there is no implicit page structure to anchor note areas. This requires associating a parent element with the note container.

We outline three syntactic proposals currently under discussion. All aim to allow endnotes, margin notes, or sidenotes for any block-level element, without requiring additional HTML markup.

Proposal 1: Use `element()` with `::after`

This approach uses the standard ::after pseudo-element and the element() function to insert the content of the note.

note {
  position: note(sidenotes);
}

section::after {
  content: element(sidenotes);
}

Considerations

Simple and uses existing CSS.
::after is already widely used by authors and cannot be duplicated, which may conflict with other content or styles.
The ::after pseudo-element is inline by default and only supports textual content in most current implementations.
Only one ::after declaration is allowed, making it impossible to define multiple note areas.

Proposal 2 : Introduce a new `::note-area` pseudo element

The ::note-area pseudo-element represents a dedicated block-level container for notes generated via the note() / element() mechanism. It dynamically inserts note content at the end of the selected element.

::note-area creates a pseudo-element that is the last-child of the selected element or the penultimate if an ::after pseudo-element is displayed. It only accepts content: element(<ident>) values and is block-level by default.

The ::note-area only receives notes originating from its parent, it does not aggregate notes from elsewhere in the document.

note {
  position: note(sidenotes);
}

section::note-area {
  content: element(sidenotes);
}

Considerations

Pseudo-elements are not accessible in the DOM and may be harder to script or interact with.
Pseudo-elements default to inline, though that can be overridden (display: block can be assumed here).
Only one ::note-area pseudo-element is possible per element; multiple note streams require more complex handling or alternative syntax.

Proposal 3 : Use `@note-area`

This approach introduces @note-area at-rule nested inside the CSS rule of the parent element. It provides explicit mapping between the element and the note stream.

note {
  position: note(sidenotes);
}

section {
  @note-area {
  	content: element(sidenotes);
	}
}

Considerations

Advantage: multiple @note-area block can be defined within a single element, supporting multiple note streams.
Keeps the note container within the DOM context, unlike pseudo-elements.
Is the at-rule model too divergent from traditional CSS syntax?
May align well with future CSS features such as container queries or scoped styles.

Further Examples and Use Cases

In all three proposals, once the note is mapped to its container, authors can use existing CSS layout mechanisms to position and size the note content, such as: float, absolute positioning, grid, exclusion, etc.

Note styling is defined in the note element and applies identically across all three models.

All three proposals also support inheritance: nested elements can override or inherit note behavior from their parents.

For example, marginal notes can be achieved in all three models using similar layout logic. Here’s an example using ::note-area.

note {
  position: note(margin-notes);
}

section::note-area {
  content: element(margin-notes);
  float-reference: inline;
  float: left;
  clear: both;
  width: 180px;
  margin-left: -180px;
}

This creates margin notes aligned with the note reference, placed in the left of the parent section.

ISSUE A dedicated issue is open to track these discussions and ensure a clear path forward for note handling in continuous media: https://github.com/css-print-lab/css-print-lab.github.io/issues/10

Notes policy

In paged media, it can happen at the end of the page that the last note overflows from the note area. As a general rule, overflow content can be moved to the next page in the note area or the margin box that corresponds to the previous one. However, rendering notes can be complex. Like the footnote-policy property in the css-gcpm-3, we need a note-policy that gives authors some control over the rendering. We propose to update the current specifications.

The note-policy must be declared in the global context of the note area or the margin box.

The values accepted in note-policy are auto, line or block.

`note-policy: auto`

The user agent chooses how to render notes, and may place some of the note body on a later page than the note reference. A note body must never be placed on a page before the note reference.

If the entire note doesn’t fit in the note area or the margin box, due to the lack of space, the user agent displays the note line by line. If the addition of a new line implies the disappearance in the page of the line of text containing the note call, the user agent stops the rendering of the note and passes the content of the remaining note in the corresponding note area on the next page. Note that the user agent must honor widows and orphans settings when doing this, and may need to apply line value on certain notes to do so.

`note-policy: line`

If a given note body cannot be placed on the current page due to lack of space, the user agent introduces a forced page break before the line containing the note reference, so that both the reference and the note body end up on the next page. Note that the user agent must honor widows and orphans settings when doing this, and may need to insert the page break on an earlier line.

`note-policy: block`

As with line, except that the forced page break is introduced before the paragraph that contains the note.

CSS Notes

Types of notes

Specifications W3C

Proposal: pattern to create notes

Global pattern

Clarification about HTML elements

In use

In unofficial specifications

What we’d like to have

Create notes with CSS

The 'note()' value

The 'element()' value

The keyword all-once

Using in @note-area

Using in margin boxes

The note counter

The ::note-call pseudo element

The ::note-marker pseudo element

The ::note-callback pseudo element

Support for multiple note types

Page note areas (@note-area)

Positioning schemes of note area

Float notes (float and float-reference)

The float-reference property

Extentions of the float property

Notes for multi-column layout

Multiple notes areas in a page

@footnote special at-rule

Notes in continuous media

Proposal 1: Use element() with ::after

Proposal 2 : Introduce a new ::note-area pseudo element

Proposal 3 : Use @note-area

Further Examples and Use Cases

Notes policy

note-policy: auto

note-policy: line

note-policy: block

The keyword `all-once`

Using in `@note-area`

The `::note-call` pseudo element

The `::note-marker` pseudo element

Page note areas (`@note-area`)

Float notes (`float` and `float-reference`)

The `float-reference` property

Extentions of the `float` property

Proposal 1: Use `element()` with `::after`

Proposal 2 : Introduce a new `::note-area` pseudo element

Proposal 3 : Use `@note-area`

`note-policy: auto`

`note-policy: line`

`note-policy: block`
